380/450mm Customizable One UV Dryer Intermittent Flexo Printing And Intermittent Die-cutting Combination Machine

Home » Products » Die Cutting Machine » Rotary Die Cutting Machine » 380/450mm Customizable One UV Dryer Intermittent Flexo Printing And Intermittent Die-cutting Combination Machine

380/450mm Customizable One UV Dryer Intermittent Flexo Printing And Intermittent Die-cutting Combination Machine

380/450mm Customizable One UV Dryer Intermittent Flexo Printing And Intermittent Die-cutting Combination Machine

5 0 Reviews

intermittent flexo printing machine, die cutting machine, flexo printing die cutting combo, label printing machine, self adhesive label machine, sticker printing machine, intermittent die cutter, semi rotary die cutting machine, UV flexo printer, narrow web flexo printing machine, label die cutting machine, roll label printing machine, flexographic printing machine, intermittent label printer, servo flexo printing machine, 370mm flexo printing machine, label making machine, sticker die cut machine, flexo die cut combo, label production machine

Model:
RTJX-370
Brand:
RUITING


Availability:



Inquire Add to Basket PDF Export

Product Description

Product Description:

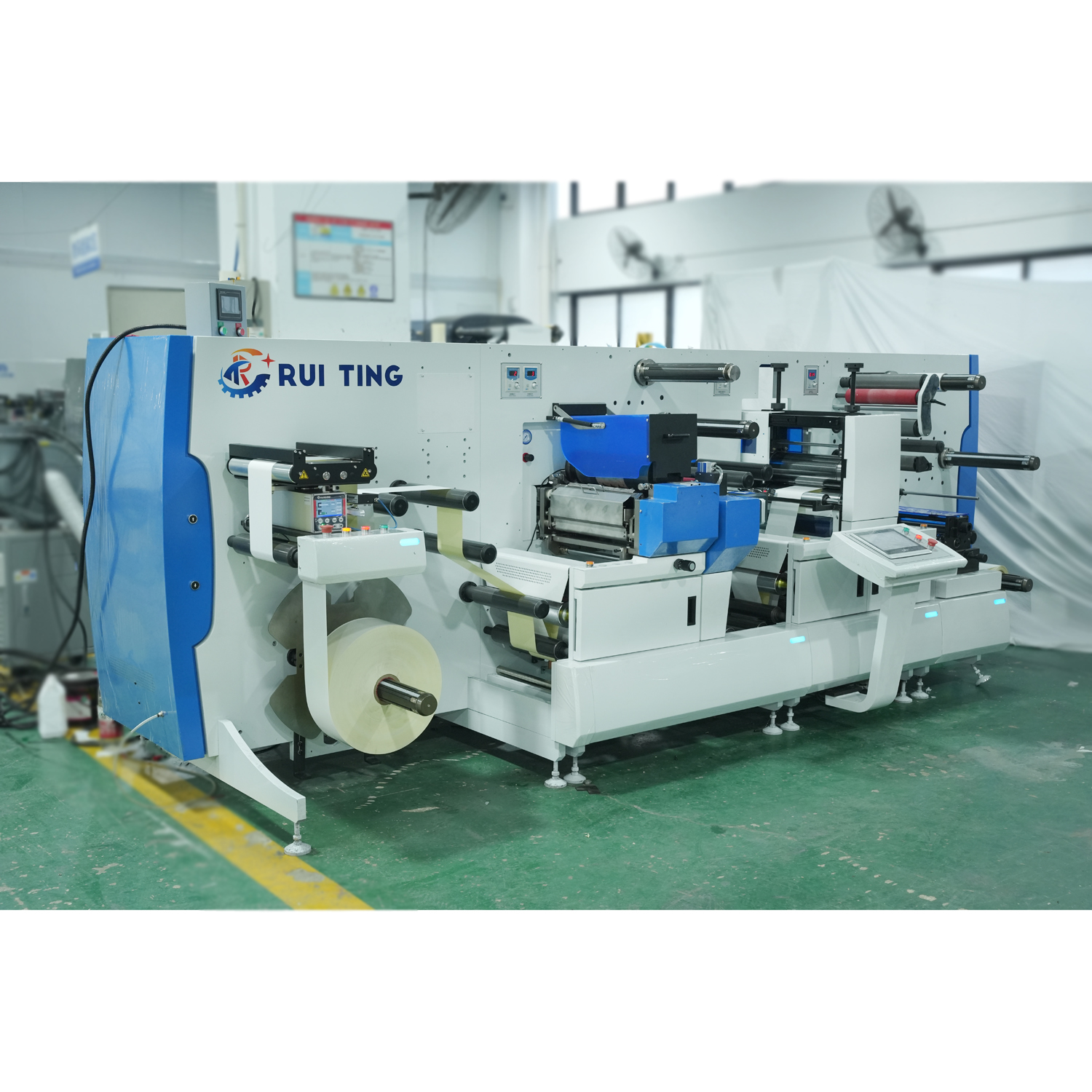

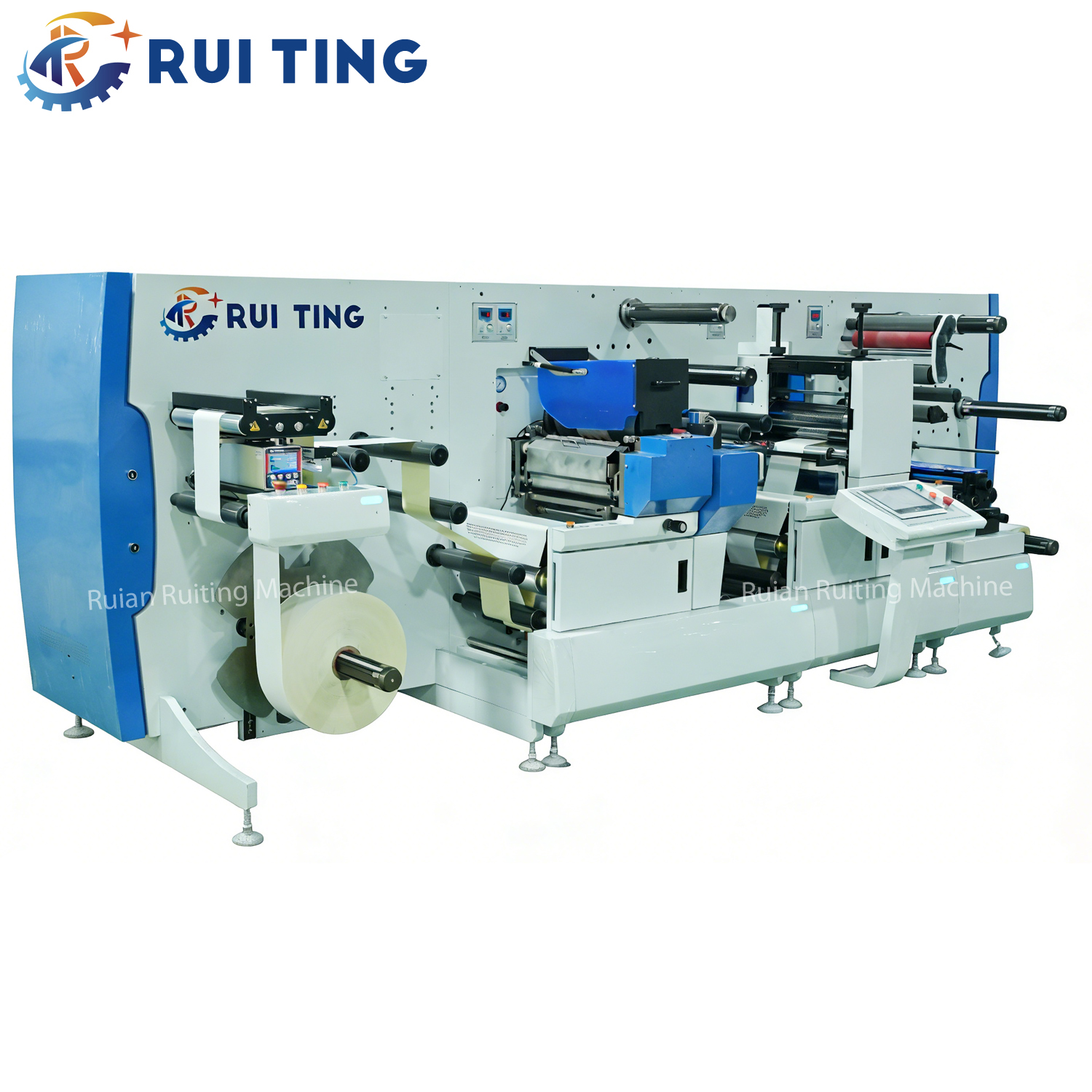

Semi-rotary Intermittent Flexo Printing and Die Cutting Combination Machine,One Uv Dryer printing,servo motor controlled, with slitting unit, for self-adhesive label production.

Product Characteristics：

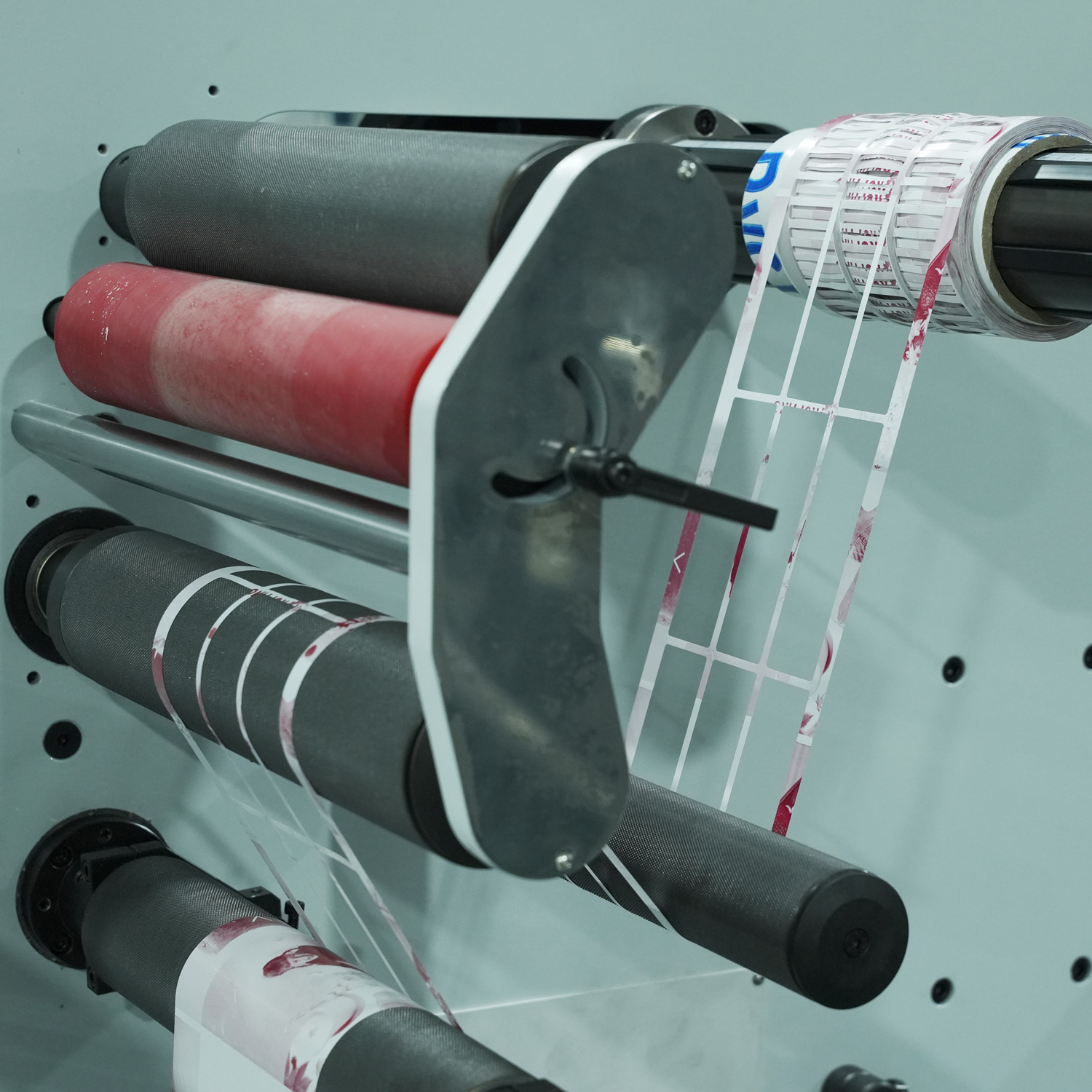

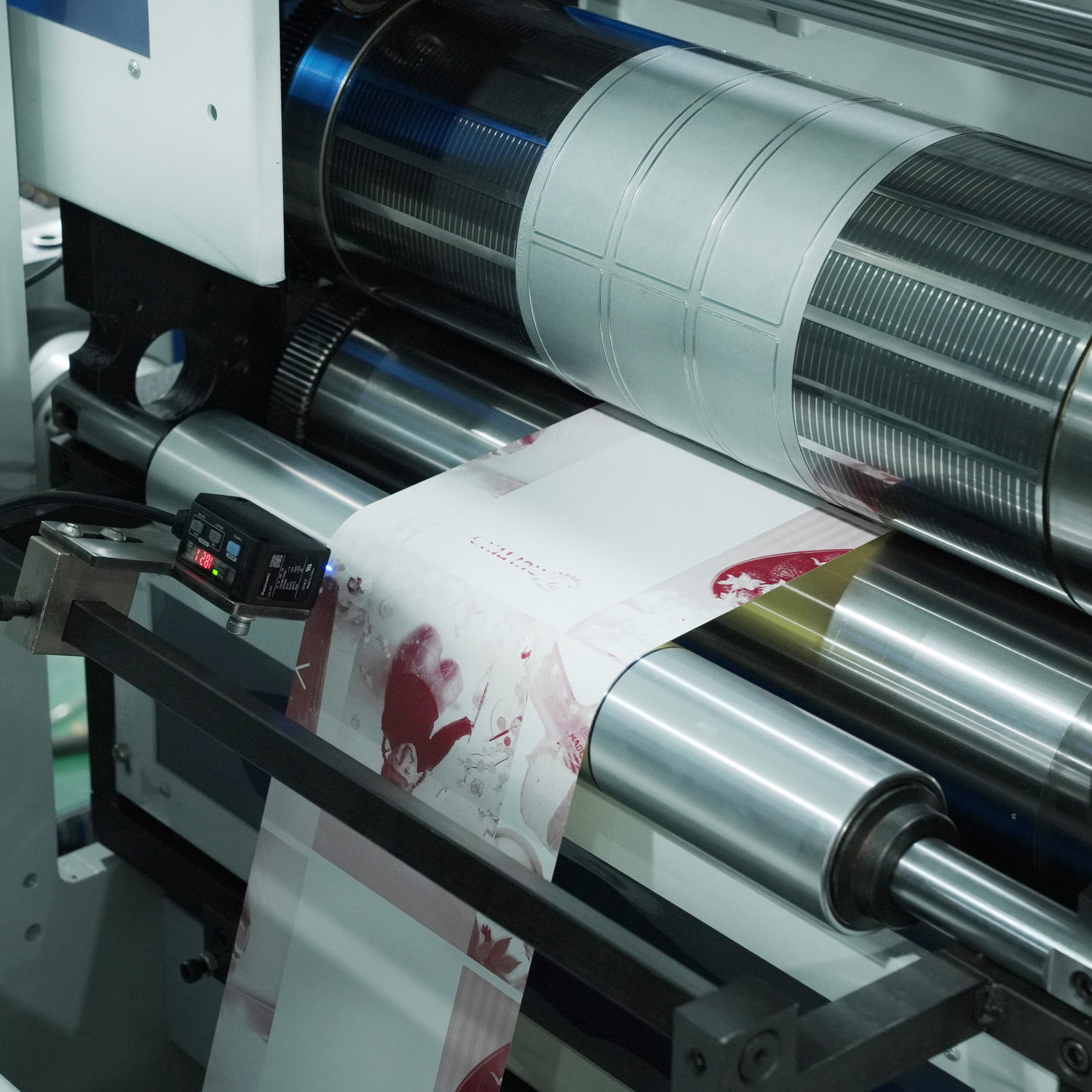

1) One rotary die cutting station with waste rewinder shaft

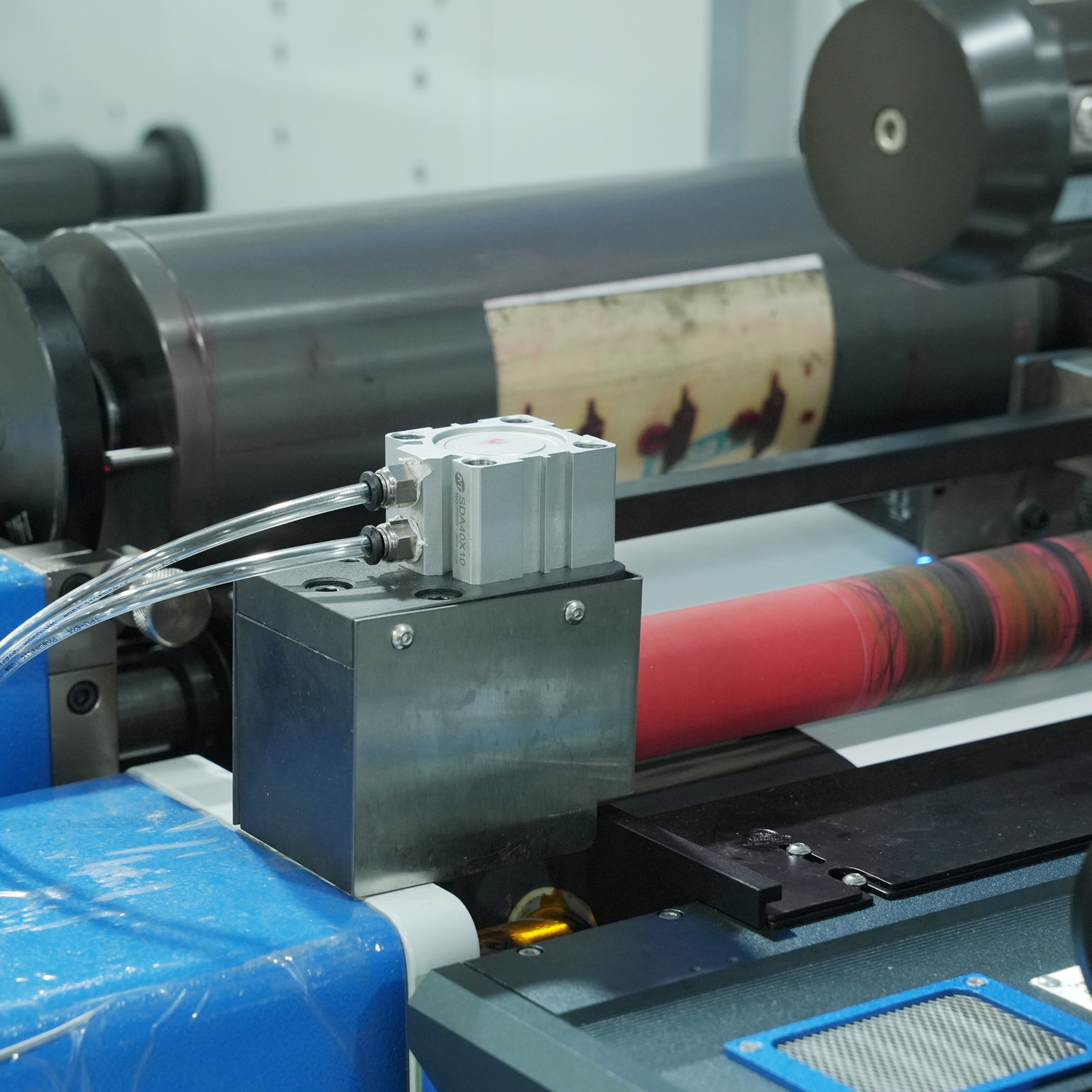

2) One UV dryer flexo printing

3) With 1pc 3’’ unwinding shaft with tension controller.

4) With 2pcs 3'' air shaft for rewind

5)With meter/number counter.

6)with 140T plate cylinder.

Data Sheet:

Slitting speed	120m/min
Die-cutting speed	60m/min (intermittent)
	120m/min (full-rotary)
Max web width	380mm
Max unwinding diameter	800 mm
Max rewinding diameter	600 mm
Die cutting length	200mm-450mm (intermittent)
	250mm-550mm (full rotary)
Printing lenth	100mm-444.5mm
Material thickness	40um-250um
Overall diameter	2300* 1300* 1500mm
Machine weight	1000kgs
Voltage	380V, 3P
Power	12KW
